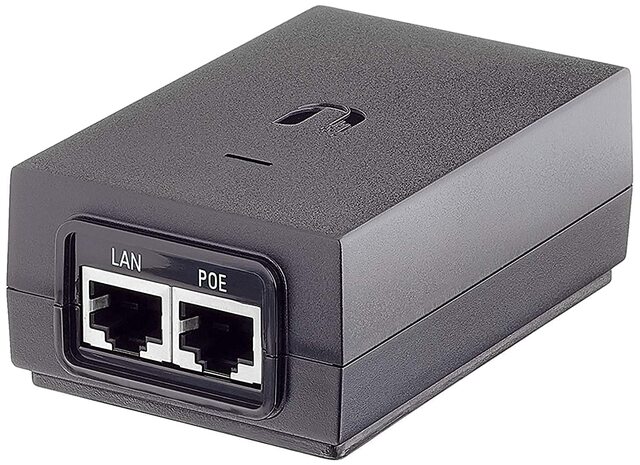

PoE-adapter 48V/24W
POE-24-30W-G-WH passer til PoE-utstyr som støtter passiv 48V/24W.
|
Dimensions |
92 x 60 x 33 mm (3.6 x 2.4 x 1.3") |
|
Weight |
159 g (5.6 oz) |
|
Output voltage |
48V DC @ 0.5A |
|
LAN activity indicator |
No |
|
Gigabit LAN port |
Yes |
|
Remote reset capability |
No |
|
Reset button |
No |
|
Rated voltage |
100-240V AC @ 50/60Hz |
|
Input current |
0.6A @ 120V AC, 0.4A @ 240V AC |
|
Inrush current |
<65A Peak @ 120V AC, <130A peak @ 230V AC |
|
Efficiency |
80 % |
|
Output ripple |
1% Max. |
|
Switching frequency |
65 kHz |
|
Line regulation |
= 3% |
|
Load regulation |
= 5% |
|
2-pair powering |
Pins 4, 5 (+) and Pins 7, 8 (-) |
|
4-pair powering |
– |
|
Storage temperature |
-30 to 70°C (-22 to 158° F) |
|
Ambient operating temperature |
0 to 40° C (32 to 104° F) |
|
Ambient operating humidity |
35 to 95% noncondensing |
|
AC connector |
IEC-320 C6 |
|
Data IN / PoE |
RJ45 shielded socket |
|
Surge protection |
Difference and common mode |
|
Clamping protection |
11V data, 60V power |
|
Max. surge discharge |
1500A (8/20 µs) power |
|
Peak pulse current |
36A (10/1000 µs) data |
|
Shunt capacitance |
<5 pF data |
|
Response time |
<1 ns |
|
Certifications |
CE, FCC, IC, UL |
